Structural Concrete and Bollard Restoration at the Sheraton Grand Chicago Riverwalk

Peter Merlo

RestoreWorks Masonry Restoration performed targeted concrete restoration and bollard repairs and replacements along the lower Riverwalk level of the Sheraton Grand Chicago. The project addressed vehicular impact caused by a garbage truck. Work included concrete reconstruction, bollard replacement, and new sheet metal integration to restore durability, safety, and long-term aesthetics along the hotel’s high-traffic riverfront access.

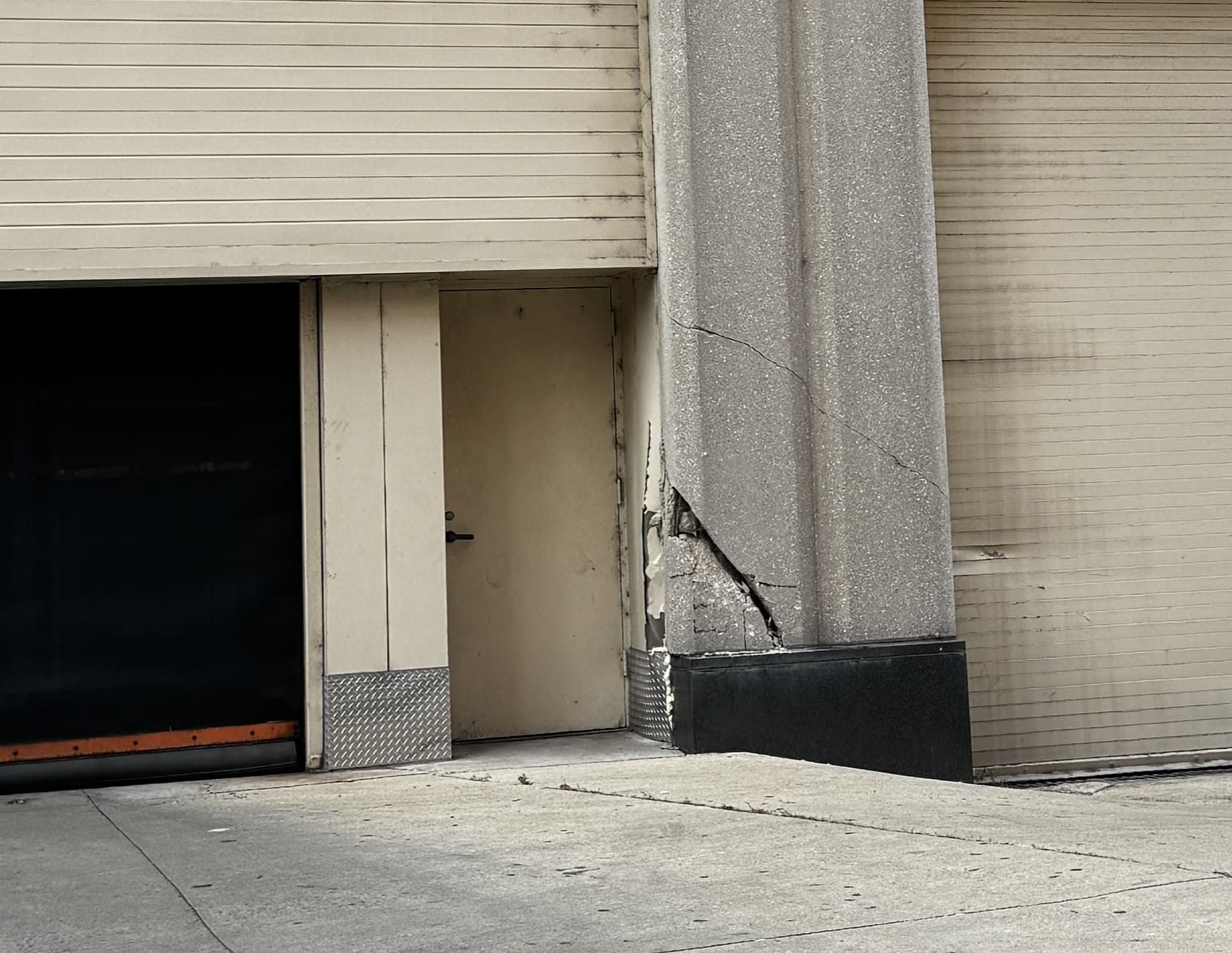

Cracked concrete column at the Sheraton Grand Chicago Riverwalk showing damage from vehicular impact prior to restoration work.

Project Background


Although the concrete damage resulted from vehicular impact, the Sheraton Grand’s Riverwalk-level location along the Chicago River introduced additional challenges for repair design. Constant exposure to moisture, freeze–thaw cycles, and de-icing materials required careful consideration when selecting materials and determining proper methods for preparing the newly exposed concrete and reinforcing steel to ensure long-term durability in a riverfront environment.


To address these issues, RestoreWorks partnered with American Structurepoint for structural oversight, Henry Frerk Sons for concrete material matching, and Sheet Metal Services Inc for custom sheet metal components that protected adjacent surfaces and improved drainage integration.

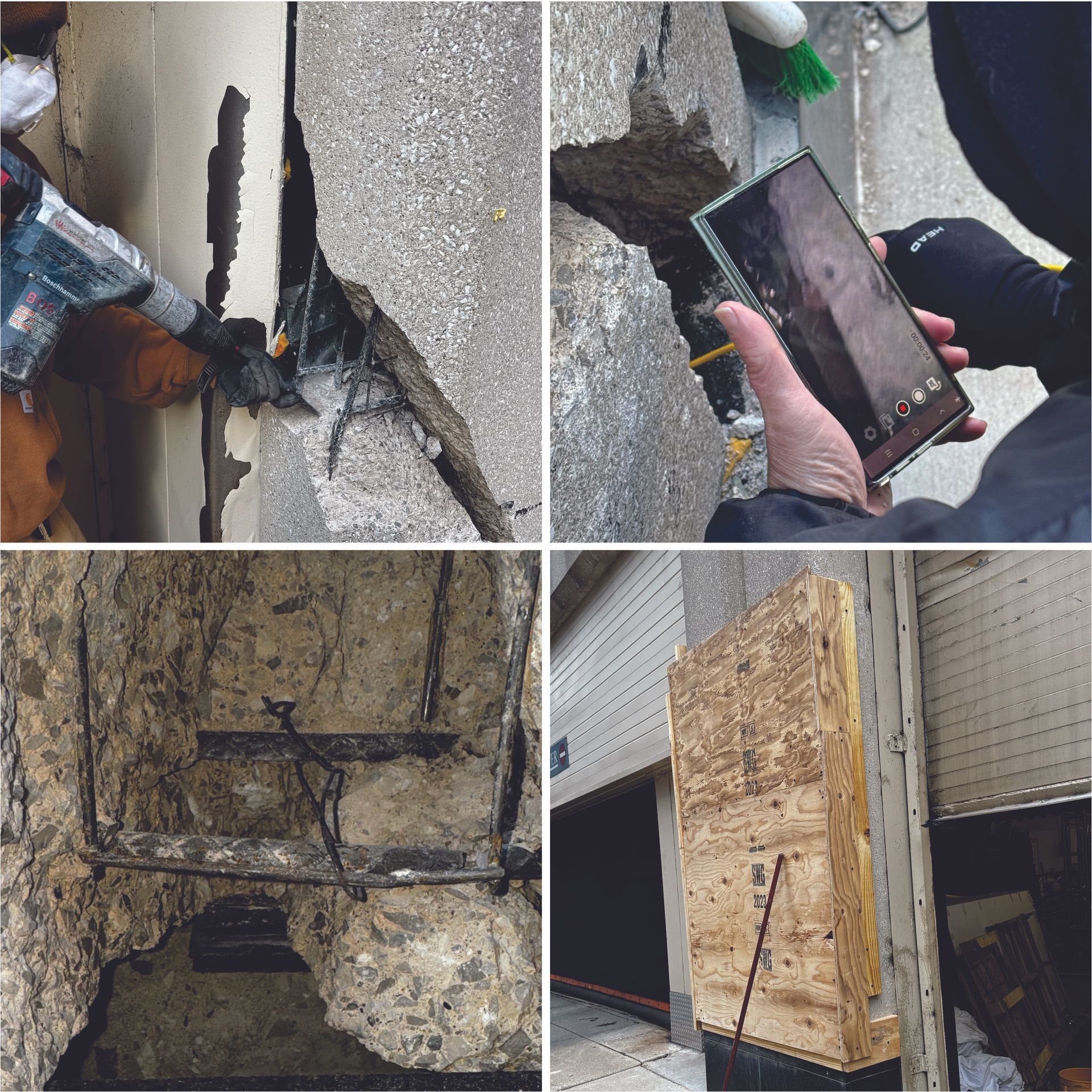

Concrete restoration inspection at the Sheraton Grand Chicago Riverwalk showing cracked façade, corroded rebar, and temporary shoring during early stages of repair.

Scope of Work

Work took place in multiple phases between August and October, ensuring steady progress while maintaining safe pedestrian circulation along the Riverwalk.



Concrete Restoration

  • Removed damaged concrete to expose bare steel reinforcement and installed additional rebar to replace and buttress existing steel.


  • Cleaned, treated, and replaced reinforcement where required.


  • Formed and poured new concrete using a blend supplied by Henry Frerk Sons to achieve color and aggregate compatibility with the existing structure.


  • Conducted surface refinishing and sandblasting to unify texture and appearance.

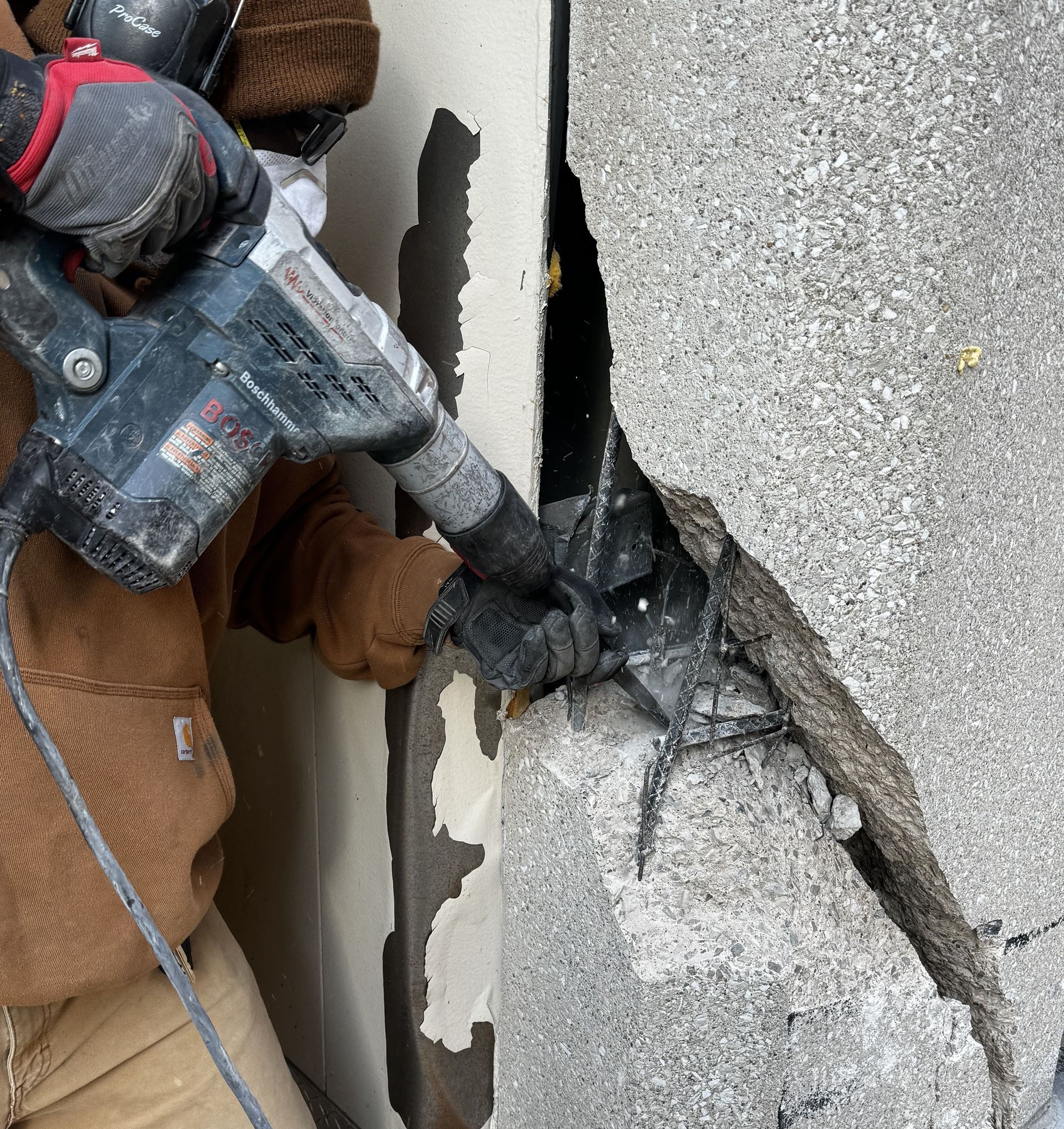

RestoreWorks technician performing controlled demolition to expose rebar during concrete restoration at the Sheraton Grand Chicago Riverwalk.

Bollard Replacement

  • Removed damaged bollards and their surrounding pads.


  • Formed and poured new reinforced concrete bases.


  • Installed new bollards, ensuring proper alignment, anchorage, and core filling, then finished each to match existing conditions with paint or original protective sleeve.


  • Completed final sealing and finishing for long-term durability in a riverfront environment.

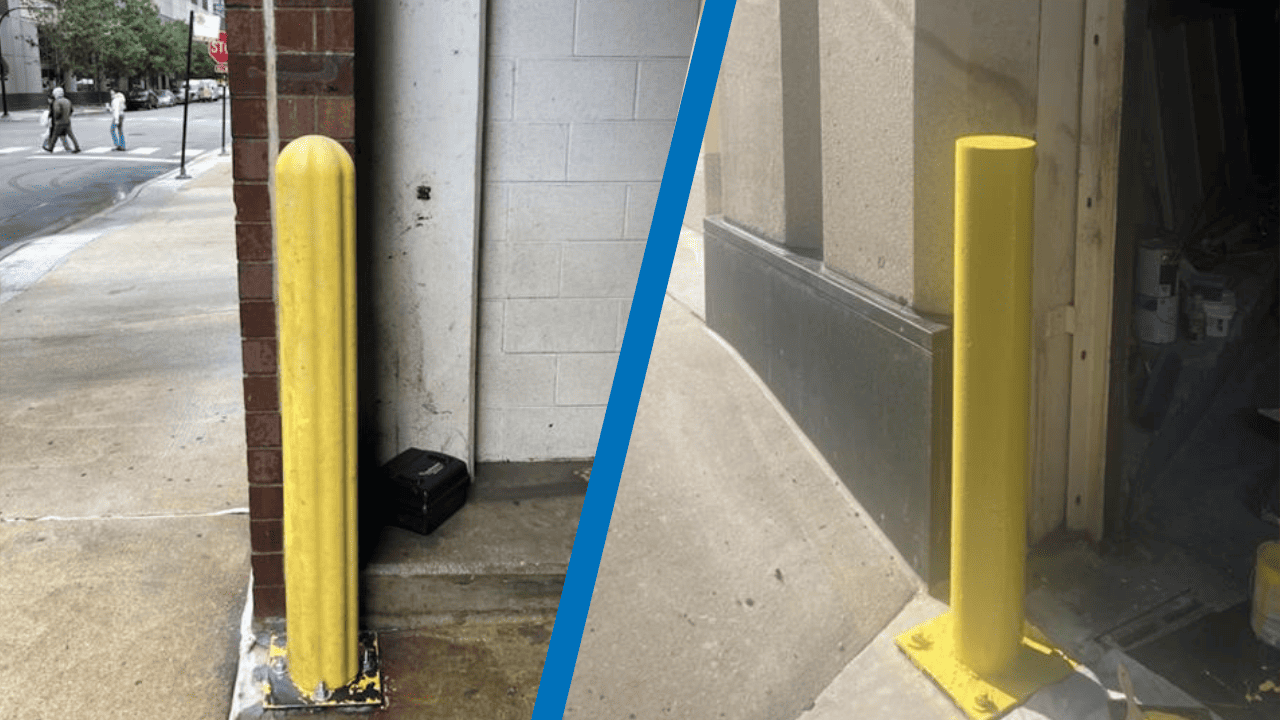

Before and after comparison of bollard replacement at the Sheraton Grand Chicago Riverwalk showing restored concrete base and newly installed yellow bollard.

Sheet Metal Integration


  • Coordinated with SMS to provide new sheet metal sheathing and protective edge elements designed to channel water away from the restored concrete surfaces.

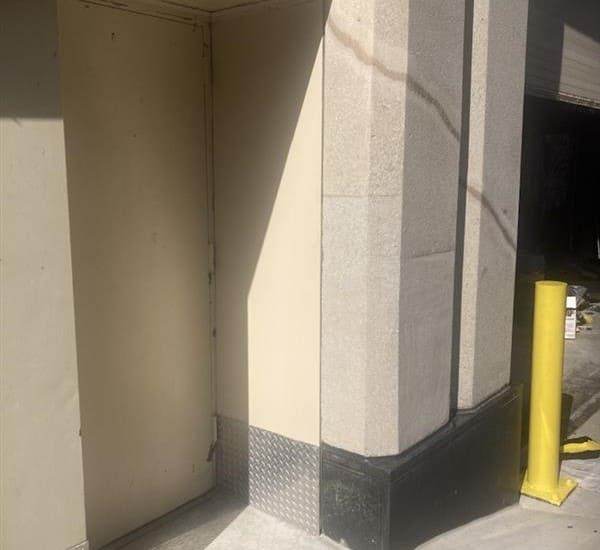

Sheet metal installation around access doorway and column base at the Sheraton Grand Chicago Riverwalk showing integrated finish with restored concrete and bollard.

Challenges and Solutions

Environmental Exposure

While the primary damage was caused by vehicular impact, riverfront temperature swings presented challenges during the restoration process. RestoreWorks used insulated formwork and Henry Frerk Sons’ recommended mixing ratios to maintain bond integrity and aggregate consistency throughout the pour.

Aesthetic Continuity

Because the Riverwalk-level façade is guest-visible, standard patch mortars would not have met appearance standards. RestoreWorks worked with Henry Frerk Sons to achieve a precise match in color, tone, and aggregate.

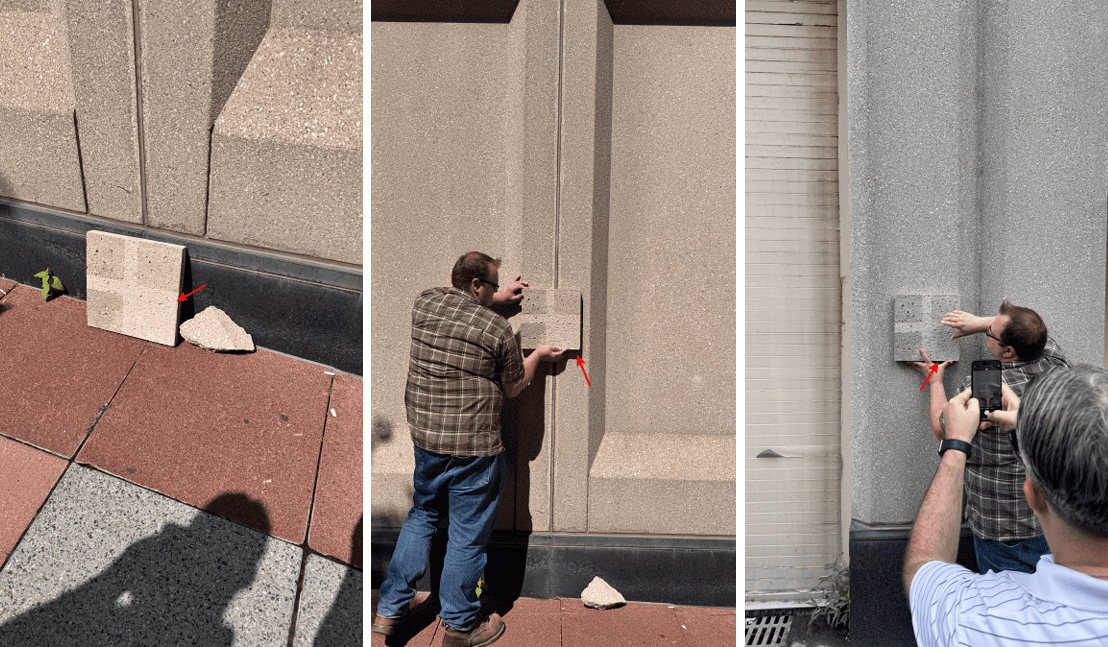

Concrete color and texture matching at the Sheraton Grand Chicago Riverwalk showing test panels compared to the existing façade to ensure a seamless visual blend.

Coordination in an Active Public Setting

Work sequencing and barricading were carefully managed to maintain safe pedestrian and vehicular flow without interrupting hotel or riverfront activity.

Results

By October, the Sheraton Grand Riverwalk restoration was completed successfully. The repaired concrete areas now provide enhanced corrosion resistance and a uniform aesthetic consistent with the hotel’s prominent location along the Chicago River. New bollards and protective sheet metal elements strengthen safety and durability while maintaining a polished appearance in a high-visibility setting.


This project highlights RestoreWorks’ expertise in combining structural precision, materials coordination, and aesthetic sensitivity within one of Chicago’s most demanding environmental contexts.


“RestoreWorks did an outstanding job restoring our building facade. Their team demonstrated excellent time management and clear communication throughout the project. The on-site crew was professional, efficient, and a pleasure to work with. We couldn’t be happier with the results.”


-Josh Lozada, Director of Engineering, Sheraton Grand Chicago

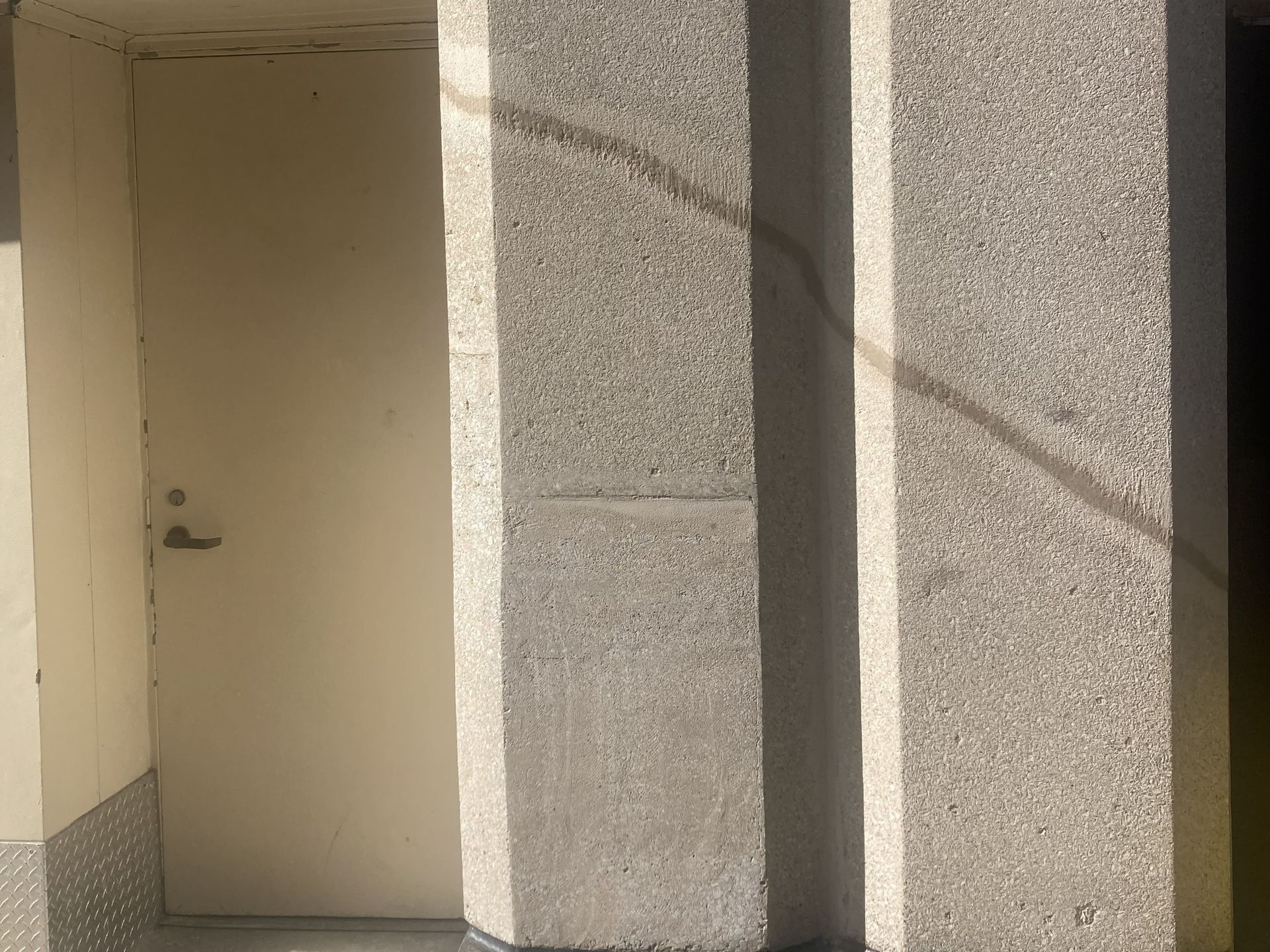

Completed concrete restoration at the Sheraton Grand Chicago Riverwalk showing seamless color and texture match to the existing façade.
Two workers in a lift basket reach toward a building façade as snow falls, with a yellow crane beside them.
By Peter Merlo • November 20, 2026
Learn how cold weather affects masonry restoration, worker safety, mortar, concrete, sealants, scaffolds, and project planning in Chicago.
Pink brick wall with horizontal mortar lines and a diagonal seam
By Peter Merlo • November 12, 2026
Learn how thermal movement affects masonry, expansion joints, shelf angles, sealants, and commercial masonry restoration in Chicago.
Snow-covered brick wall with two arched windows and small benches beneath them
By Peter Merlo • November 11, 2026
Learn which masonry repairs to prioritize before winter in Chicago, including loose brick, failed sealants, deteriorated mortar, lintels, and concrete.
Flyer for “Implementation of Stone Restoration Projects” with a man beside a courthouse dome.
By Peter Merlo • November 5, 2026
Explore three historic courthouse restoration projects and lessons on granite stair repairs, limestone cleaning, material matching, and project coordination.
Close-up of a red brick wall with light mortar and a vertical seam.
By Peter Merlo • October 22, 2026
Learn what to inspect, repair, and monitor in masonry expansion joints before Chicago winter weather increases moisture and freeze-thaw risk.
Snow-covered brick apartment building with white-framed windows and snowy rooftop edges
By Peter Merlo • October 21, 2026
Plan commercial facade restoration before Chicago winter. Learn which masonry, sealant, lintel, concrete, and facade repairs to prioritize.
Close-up of a brick corner with blackened soot on one side and clean red brick on the other.
By Peter Merlo • October 15, 2026
Learn how neglected masonry cleaning can contribute to staining, moisture issues, and damage on commercial buildings in Chicago.
Worker applying black waterproof membrane to the base of a brick wall
By Peter Merlo • October 14, 2026
Learn how Chicago building owners can address masonry water intrusion before winter with tuckpointing, flashing, sealants, and water repellents.

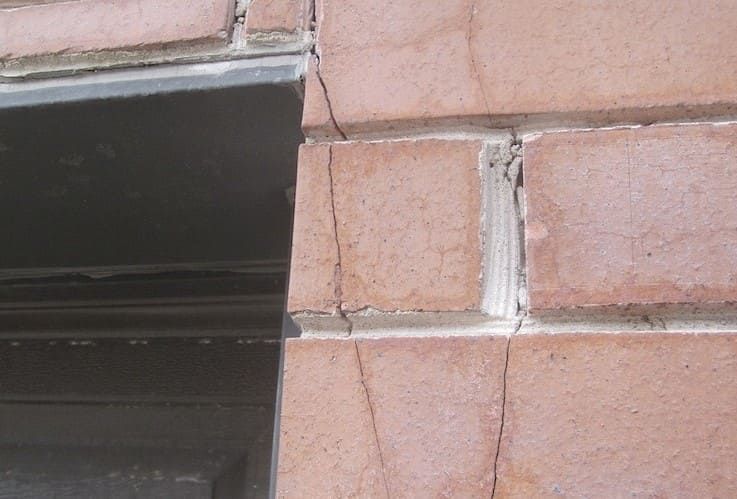

Cracked brick wall beside a black window or doorway frame
